High Equipped Flip Off Cap Assembly Machine

Products

High Equipped Flip Off Cap Assembly Machine

Product No.:LS-4-002

  • Details
Function:

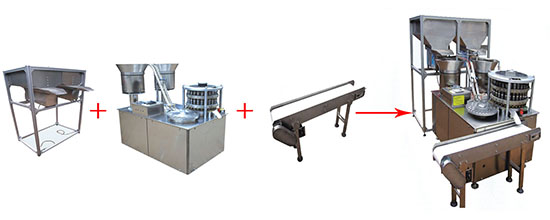

High equipped flip off cap assembly machine is to equip auto hopper and conveyor belt for the flip off cap assembly machine to increase the qualified rate and reduce labor intensity.This flip off cap assembly machine is used to combine plastic part with aluminum part for making flip off caps/seals,it works as following procedures:Firstly feed aluminum seals and plastic caps into the individual electromagnetic hopper,then both parts go through the chutes to the arrange table,finally  the two parts are assembled by the heated assembling punches.


Technical specification:

LS-4 Flip off cap assembly machine
Model LS-4
Production Capacity
30,000-33,000pcs/hr for 13&15&20mm flip off seals
Voltage 380V
Power 3.5KW
Assembling heads 36PCS
N.W. 650KG
Dimension 1400*1000*1300mm
Warranty 1 year for free replacement of components
















Technical features:

1.Adopt stainless steel SS201,SS304,SS316L,materials can be customized according to your requirements;

2.Working speed can be adjusted by controlling frequency controller;

3.Comparing with the machine manufactured by other suppliers,our flip off cap assembly machine has the features of higher speed,higher qualified rate and less occupied area;

4.Easy to operate and maintenance,steady production with high efficiency;

5.Zero pollution,applicable for high-ends products;

6.Our machine can be equipped with auto mateiral and conveyor belt for check,which will help to reduce labor intensity and increase qualified rate.

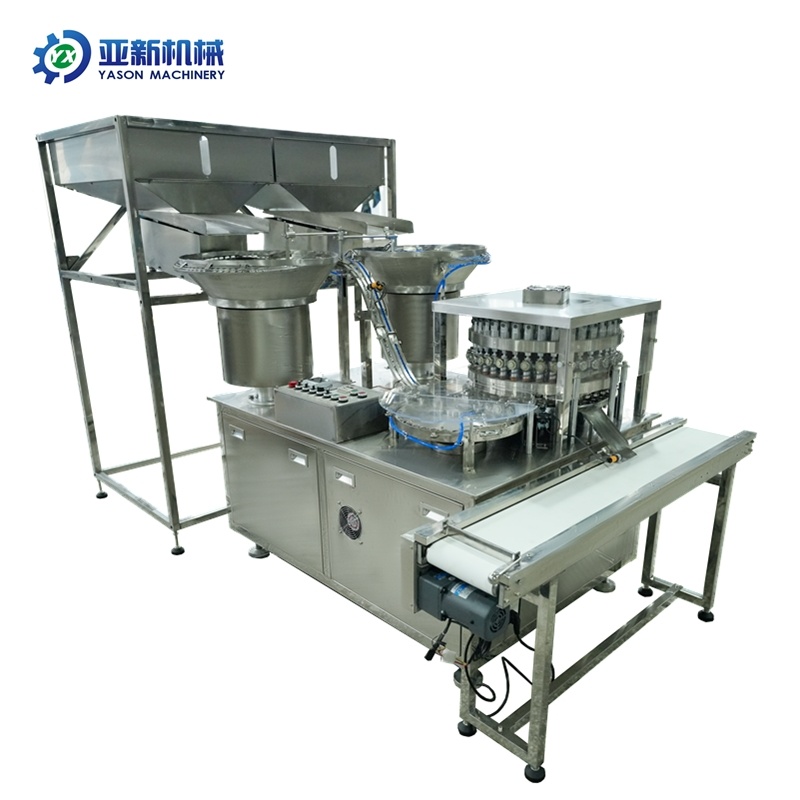

High equipped LS-4 flip off cap assembly machine:

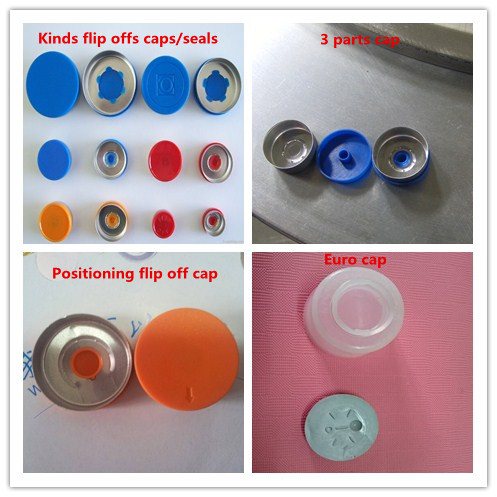

Samples for flip off caps/seals assembled by our assembly machine:

Previous Product:Newest LS-5 Flip Off Cap Assembly Machine

Next Product:LS-4 Flip off seal assembly machine
