Description:

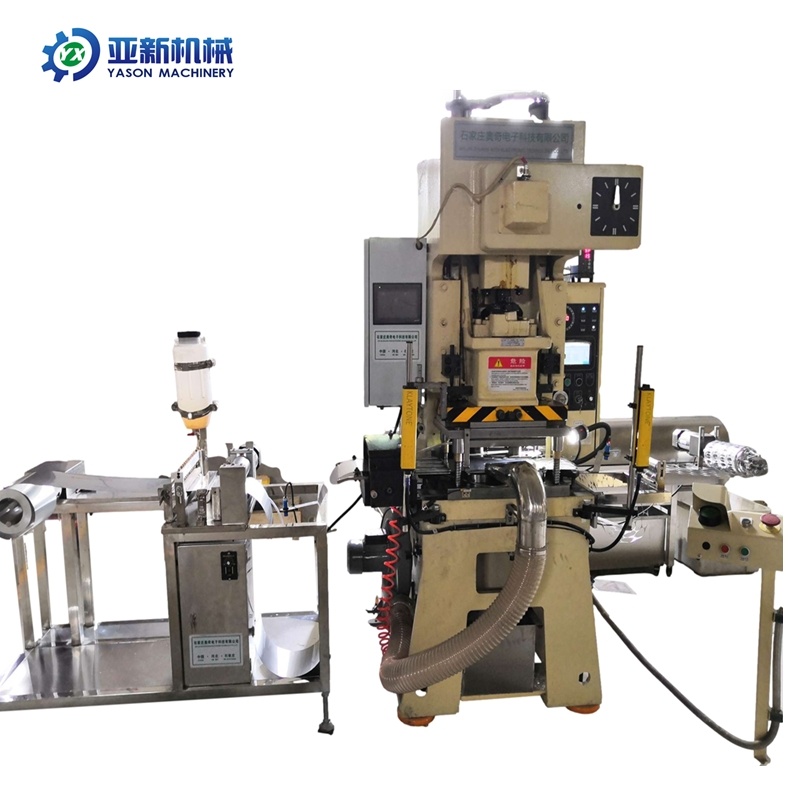

35 ton Pneumatic precision punch machine equip with 12 cavities aluminum mold.
1) capacity is 100,000pcs/hr for 13mm or 20mm flip off aluminum seal.
2) Available cavities mold:13mm 12 cavities,20mm 12 cavities,32mm 4 cavities
3) Mold adopts special trimming way, slove aluminum debris problem;
4) Upper mold has gas circuit,guarantee center hole waste dealing;
5) Mold working parts material is Cr12Mv,Hardness is HRC60—63;
6) Has function of Hydraulic overload protection
7) Aluminum coil diameter is 800mm,auto material charge and oil aluminum coil;
8) Including mold protection system, if any cap stuck,machine will stop automatically.
9)Punch machine dimension: 1280X850X2220mm
10)Punch machine+mold+auxiliary machinery dimension: 3600X1800X2220;
11)Working table size: 600X300mm;
12)Punch machine power:3.7KW;
13)Auxiliary machinery power:1.5KW;
14)Voltage:380/220V;
15)Punch machine weight:3100kg;
16)Auxiliary machinery weight:250kg

35 ton press machine with 12 cavities mold have following advantages:
1).Percentage of outturn is higher, helps to decrease material cost, cavity between cavity distance is 0.6-0.8mm;
2).Mold structure is simple, each cavity is independent, easier for maintenance;
3). Auxiliary machineries are customized to equip with punch machine, including material feeder, oil brush, material loading, mold protection, waste collecting, ring separator etc.
